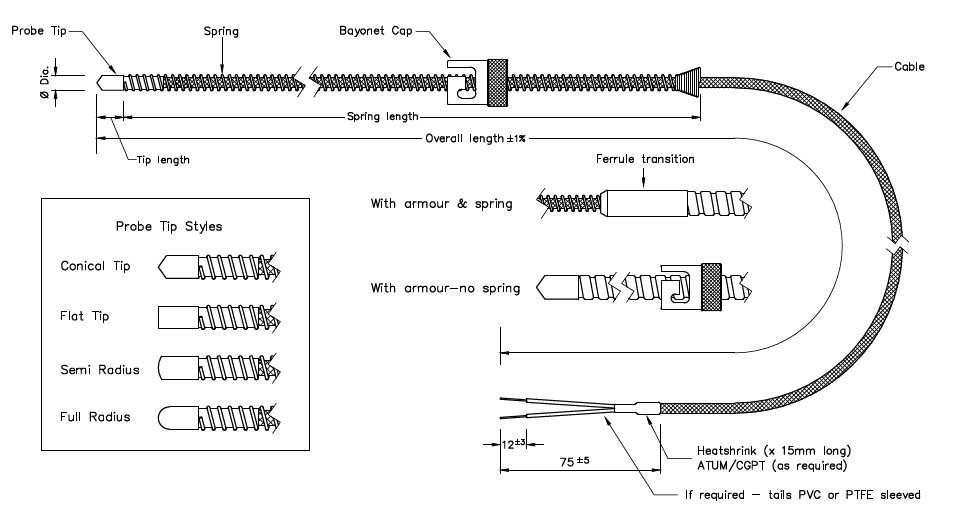

Flexicouple (FS STYLE)
Customer/Company Name
Country
Email
Telephone
Probe Style
Please Select
FS (with spring)
FSX (with armour but without spring)
Junction Type
Please Select
G: Grounded
I: Insulated
No. of Elements
Please Select
S: Single
D: Duplex
Thermocouple Type
Please Select
J: Iron/Con
K: NiCr/NiAl
T: Cu/Con
N: NiCrSil/Nisil
E: Cr/Con
Tip Style
Please Select
G: Conical Tip (supplied as standard if 'Tip Style' left blank)
A: Rounded Tip (full radius)
E: Flat Tip
H: Semi Rounded Tip (half radius)
Tip Diameter (mm)
Please Select
3.0: 3.0mm
3.2: 3.2mm 1/8"
4.0: 4.0mm
4.5: 4.5mm
4.76: 4.76mm 3/16"
5.0: 5.0mm
6.0: 6.0mm
6.35: 6.35mm 1/4"
8.0: 8.0mm
Tip Length (mm)
Bayonet Cap Finish
Please Select
Plated Brass
Stainless Steel
Bayonet Cap Size
Please Select
10mm 1 slot
11.5mm 1 slot
10mm 2 slot
11.5mm 2 slot
12.5mm 2 slot
13mm 2 slot
14mm 2 slot
15mm 2 slot
16mm 2 slot
17mm 2 slot
Cable Length (m)
Cable Type
Please Select
C2: PTFE F/P
C3: F/Glass F/P
C4: F/Glass +st/st overbraid
C7: PFA F/P
C9: Silicone Rubber
C20: PTFE F/P + SSOB
C70: PFA F/P + SSOB
Termination
Please Select
T: Tails (75mm)
ST: T/C Spades
MP: Mini Plug
MS: Mini Socket
MPD: Mini Dual Plug
MSD: Mini Dual Socket
MCP: Mini Ceramic Plug
MCS: Mini Ceramic Socket
SP: Standard Plug
SS: Standard Socket
SPD: Standard Dual Plug
SSD: Standard Dual Socket
SCP: Standard Ceramic Plug
SCS: Standard Ceramic Socket
Colour Code
Please Select
I: IEC
B: BS
A: ANSI
J: JIS
Quantity Required
Additional Comments
