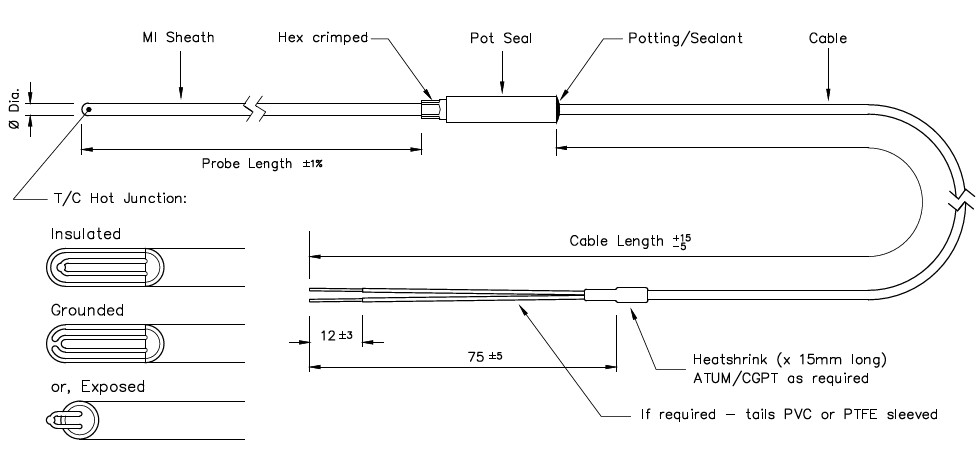

Mineral Insulated Thermocouple (MA) (MA STYLE)
Customer/Company Name
Country
Email
Telephone
Junction Type
Please Select
G: Grounded
I: Insulated
E: Exposed
No.of Elements
Please Select
S: Single
D: Duplex
T: Triplex
Thermocouple Type
Please Select
J: Iron/Con
K: NiCr/NiAl
T: Cu/Con
N: NiCrSil/Nisil
E: Cr/Con
R: Pt13%Rho/Pt
S: Pt10%Rho/Pt
Sheath Material
Please Select
S: 310 SS (K&N)
S: 316 SS (T)
S: 321 SS (J&E)
I: Inconel
N: Nicrosil
P: Pt10%Rho
Probe Diameter (mm)
Please Select
025: 0.25mm
05: 0.5mm
10: 1.0mm
15: 1.5mm
16: 1.6mm 1/16"
20: 2.0mm
30: 3.0mm
32: 3.2mm 1/8"
45: 4.5mm
48: 4.76mm 3/16"
60: 6.0mm
64: 6.35mm 1/4"
80: 8.0mm
Probe Length (mm)
Pot Seal Type
Please Select
P1: Plain 200°C
P2: Plain 450°C
P3: 1/8"BSP 200°C
P4: 1/8"BSP 450°C
P5: M8x1 200°C
P6: M8x1 450°C
Cable Length (m)
Cable Type
Please Select
C1: PVC F/P
C2: PTFE F/P
C3: F/Glass F/P
C4: F/Glass +st/st overbraid
C5: PTFE TTP
C6: PU coiled (1.5mts extended)
C7: PFA F/P
C8: PFA TTP
C9: Silicone Rubber
C10: PVC MYLAR
C20: PTFE F/P + SSOB
C50: 1/0.2mm PTFE TTP
C51: 1/0.3mm PTFE TTP
C52: 1/0.5mm PTFE TTP
C70: PFA F/P + SSOB
C80: 1/0.2mm PFA TTP
C81: 1/0.3mm PFA TTP
C82: 1/0.5mm PFA TTP
Termination
Please Select
T: Tails (75mm)
ST: T/C Spades
MP: Mini Plug
MS: Mini Socket
MPD: Mini Dual Plug
MSD: Mini Dual Socket
MCP: Mini Ceramic Plug
MCS: Mini Ceramic Socket
SP: Standard Plug
SS: Standard Socket
SPD: Standard Dual Plug
SSD: Standard Dual Socket
SCP: Standard Ceramic Plug
SCS: Standard Ceramic Socket
Colour Code
Please Select
I: IEC
B: BS
A: ANSI
J: JIS
Quantity Required
Additional Comments
